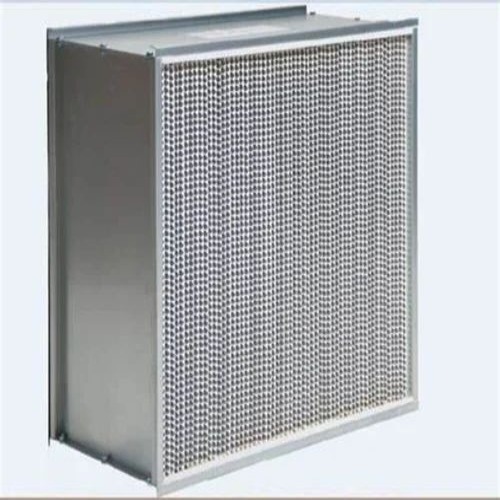

Aluminium Separator Hepa Filters

Product Description

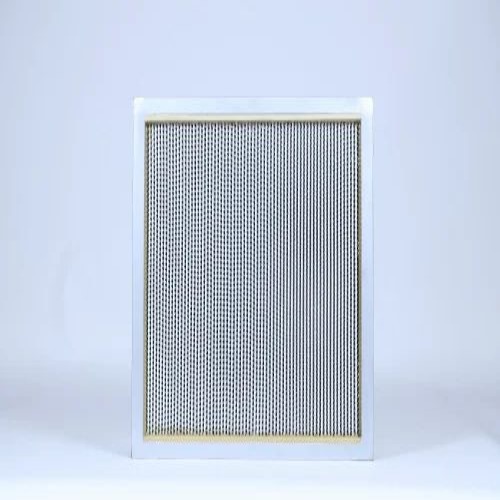

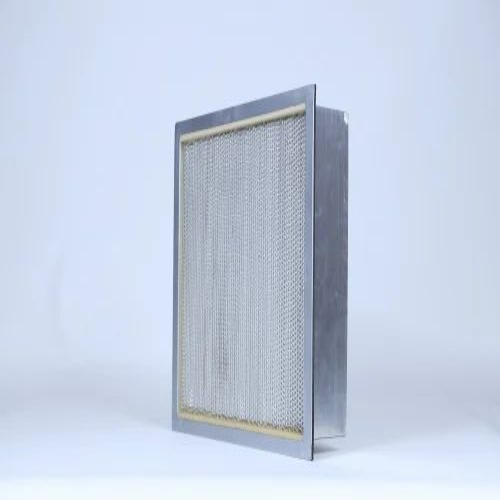

The Aluminium Separator HEPA Filter is a high-efficiency air filtration unit designed to remove at least 99.97% of airborne particles as small as 0.3 microns. Featuring a robust construction with aluminium separators between pleats, this filter maintains structural integrity and ensures consistent airflow across the media, even in high-capacity air handling systems.

Ideal for applications requiring ultra-clean air, including cleanrooms, hospitals, pharmaceutical manufacturing, and semiconductor production, the aluminium separators prevent pleat deformation and reduce pressure drop, thereby extending filter life and enhancing performance.

Key Features:

• High Filtration Efficiency: Removes 99.97% of particles ‰0.3 microns (H13 to H14 classification per EN 1822).

• Aluminium Separator Technology: Durable separators keep pleats evenly spaced to maintain optimal airflow and minimize pressure drop.

• Rigid Frame Construction: Galvanized steel or aluminium frame for enhanced durability and airtight sealing.

• Pleated Microglass Media: Fine microglass fiber media optimized for HEPA filtration.

• Leak-Free Design: Sealed with polyurethane or hot-melt adhesives to prevent bypass.

• Wide Application Range: Suitable for critical environments requiring clean air.

Specifications (Typical):

• Filter Class: H13 / H14 (EN 1822)

• Efficiency: ‰99.97% at 0.3 microns

• Media: Microglass fiber

• Separator Material: Anodized aluminium

• Frame: Galvanized steel or aluminium

• Depth: 150 mm / 292 mm standard

• Rated Airflow: Variable based on size, up to several thousand CFM

• Temperature Resistance: Up to 70C continuous operation

Applications:

• Cleanrooms and pharmaceutical manufacturing

• Hospitals and medical facilities

• Semiconductor and electronics production

• Food and beverage industry sterile areas

• HVAC systems requiring high-efficiency air purification

Frequently Asked Questions (FAQ)

Q1: What is the purpose of aluminium separators in HEPA filters?

A: Aluminium separators maintain uniform pleat spacing, preventing pleat collapse or clogging. This helps reduce pressure drop and ensures consistent airflow and filtration performance.

Q2: What efficiency rating do these HEPA filters provide?

A: They are rated H13 or H14 under EN 1822 standards, meaning they capture 99.95% to 99.995% of particles 0.3 microns and larger.

Q3: Can these filters be used in cleanroom environments?

A: Yes, they are ideal for cleanrooms and other critical environments requiring ultra-clean air.

Q4: How often should aluminium separator HEPA filters be replaced?

A: Replacement depends on operating conditions and pressure drop measurements but generally ranges from 6 months to 2 years.

Q5: Are these filters washable or reusable?

A: No, HEPA filters are not washable or reusable. Attempting to clean them can damage the filter media and compromise efficiency.

Q6: What frame materials are available?

A: Frames are typically made from galvanized steel or aluminium for corrosion resistance and durability.

Q7: Can custom sizes and airflow rates be manufactured?

A: Yes, custom sizes and airflow capacities can be tailored to meet specific system requirements.
