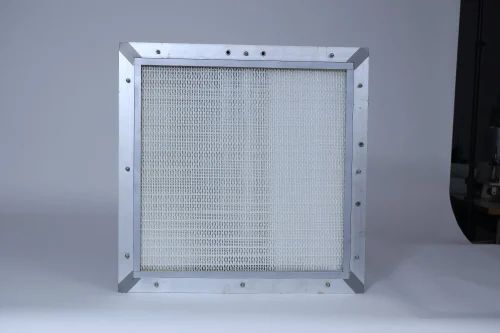

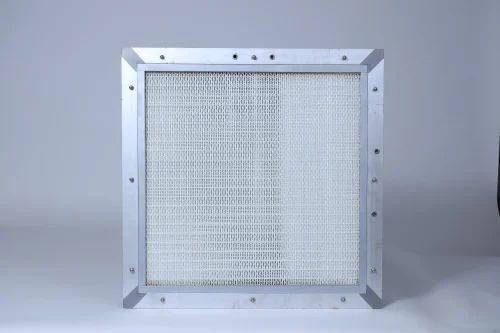

Mini Pleat Hepa Filter

Product Description

The Mini Pleat HEPA (High Efficiency Particulate Air) Filter is a high-performance air filtration solution engineered to remove 99.97% of airborne particles as small as 0.3 microns. Designed with a compact mini pleat construction, this filter offers an extended surface area for increased dust-holding capacity and low resistance to airflow, making it ideal for environments that require superior air quality with energy-efficient performance.

Key Features:

• Filtration Efficiency: ‰99.97% at 0.3 microns (H13 or H14 grade per EN1822 standard)

• Media Type: Micro-glass fiber paper

• Construction: Mini pleated media with hot-melt separators

• Frame Options: Galvanized steel, aluminum, or ABS plastic

• Seal Options: Neoprene or polyurethane gasket

• Faceguard: Metal mesh or optional protective screen

• Standard Sizes: Custom sizes available upon request

• Applications: Cleanrooms, laboratories, pharmaceutical manufacturing, medical facilities, electronics, food processing, HVAC systems

Frequently Asked Questions (FAQs)

1. What is a Mini Pleat HEPA filter?

A Mini Pleat HEPA filter is a high-efficiency filter made using fine pleated media arranged closely together to maximize surface area. It's designed to trap airborne particles with high efficiency, offering long service life and compact size.

2. What does "99.97% efficiency at 0.3 microns" mean?

This means the filter can capture at least 99.97% of particles that are 0.3 microns in diameter, which is considered the most penetrating particle size (MPPS). This is a standard benchmark for HEPA filters.

3. Where are Mini Pleat HEPA filters typically used?

They are used in critical environments like cleanrooms, medical facilities, pharmaceutical plants, biotech labs, data centers, and high-end HVAC systems that require ultra-clean air.

4. What is the difference between mini pleat and deep pleat filters?

Mini pleat filters use tightly packed pleated media for compactness and low resistance. Deep pleat filters are bulkier, often used where space is not a concern and very high dust load capacity is needed.

5. How often should I replace a Mini Pleat HEPA filter?

Replacement depends on the application and environment. Generally, it™s recommended every 6“12 months, or when pressure drop exceeds recommended levels.

6. Can this filter be customized?

Yes, most manufacturers offer custom sizes, gasket types, and frame materials to fit specific equipment or cleanroom designs.

7. How is a Mini Pleat HEPA filter tested?

Each filter is typically tested using particle counters or photometers, according to standards such as EN1822 or IEST-RP-CC001.3, to ensure it meets HEPA-level efficiency.
