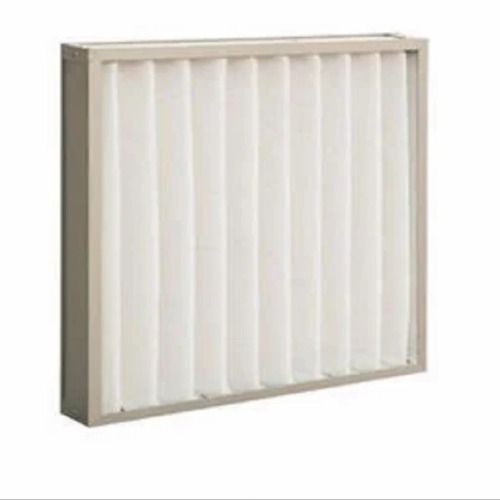

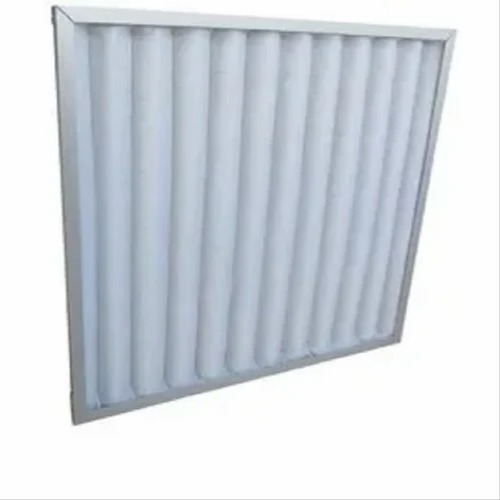

Panel AHU Filter

Product Description

The Panel AHU Filter is a reliable and cost-effective filtration solution designed specifically for air handling units (AHUs) in commercial and industrial HVAC systems. It provides efficient removal of coarse and fine airborne particles such as dust, pollen, and fibers, protecting downstream components and improving indoor air quality.

Constructed with a sturdy frame and pleated synthetic or fiberglass media, this panel filter offers low resistance to airflow and high dust-holding capacity, ensuring optimal performance and extended service life. It is easy to install and replace, making it a popular choice for routine HVAC maintenance.

Key Features:

• Wide Compatibility: Fits standard AHU filter racks and frames.

• Efficient Filtration: Captures dust, lint, pollen, and other airborne particles.

• Durable Construction: Strong frame made of galvanized steel, cardboard, or plastic.

• Pleated Filter Media: Maximizes surface area for longer filter life and better performance.

• Low Pressure Drop: Ensures efficient airflow and energy savings.

• Available in Multiple Ratings: From coarse (G3) to fine (F7) filtration efficiencies.

Specifications (Typical):

• Filter Class: G3 to F7 (EN 779) / MERV 5 to MERV 13 (ASHRAE 52.2)

• Media: Synthetic fiber / Microglass fiber / Fiberglass

• Frame Material: Galvanized steel / Cardboard / Plastic

• Thickness: 25 mm / 50 mm / 96 mm / 100 mm

• Standard Sizes: Multiple standard AHU panel sizes available; custom sizes on request

• Temperature Range: Up to 70C continuous operation

Applications:

• Air handling units in commercial buildings, offices, hospitals, schools

• Pre-filtration or fine filtration stages in HVAC systems

• Industrial ventilation systems requiring particulate filtration

Frequently Asked Questions (FAQ)

Q1: What is a panel AHU filter used for?

A: It is used to filter airborne particles in HVAC air handling units, protecting system components and improving indoor air quality.

Q2: What filtration efficiencies are available for panel AHU filters?

A: They are commonly available from G3 (coarse) to F7 (fine) filtration grades, suitable for capturing particles ranging from larger dust to fine pollen and fibers.

Q3: How often should panel AHU filters be replaced?

A: Replacement typically occurs every 3 to 6 months, depending on usage and environmental conditions. Pressure drop monitoring can help determine the optimal replacement time.

Q4: Are panel AHU filters washable or reusable?

A: No, these filters are generally disposable and should be replaced when dirty. Washing can damage the filter media and reduce effectiveness.

Q5: Can I use panel filters in all types of AHUs?

A: They are compatible with most standard air handling units designed to accept panel filters, but always check dimensions and specifications.

Q6: What materials are the filter frames made from?

A: Frames can be galvanized steel, cardboard, or plastic, depending on the model and application requirements.

Q7: Can panel AHU filters be customized?

A: Yes, custom sizes and filtration media can be manufactured to meet specific airflow, size, or filtration requirements.
